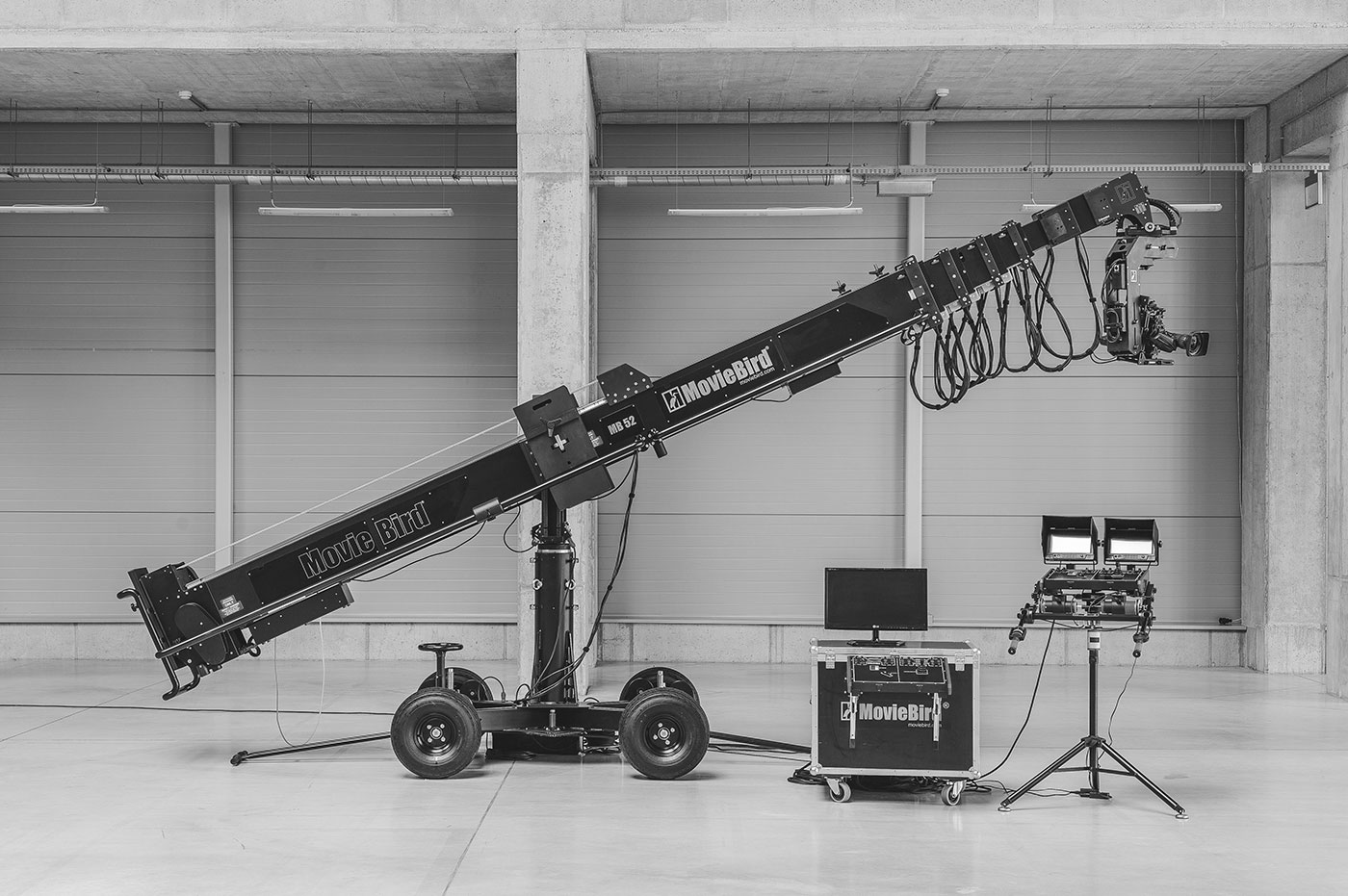

MovieBird® 52 Technocrane
Description
The MB52 is an extended version of MB45 mostly suitable for TV studio as this crane maximum load is up to 40kg. MB52 has the same dolly ‘footprint’ as the smaller MB30 crane. Owing to the cranes small weight and size when disassembled it can be transported in a standard 16 ton truck or a bespoke trailer.
Additional Information
- Max Nose Load 88lbs / 40kg (head and camera)
- Max Extension Speed: 2 m/s
- Arm Weight with Yoke 680kg / 1500lbs
- Base Weight: 300kg / 660lbs
- One Counter Weight 15kg / 33lbs
- Crane Weight Including Counter Weights 1700kg / 3750lbs
- Specifications may change at any time.
- Please contact us directly if your requirements are critical.
The MB52 includes:
High end digital electronics that enable the operator to program the actual range of movement. Nine digitally controlled speed settings with additional smooth logarithmic movement fades. Leveling system controlled by digital laser encoders ensures that the remote head is at the true horizontal position regardless of the speed or complexity of the movement.
A highly specialized rail system ensures totally smooth telescopic movements.
Unique service level agreements (SLA) including same day exchange of the crane in a very demanding production environment.
MovieBird is fully compatible with all models of Remote Heads and all camera types from DSLR to IMAX. For special effects you can even mount moving light sources on it.
MovieBird is completely modular. In the unlikely event of a problem, whatever and whenever, down-time is kept to an absolute minimum.
